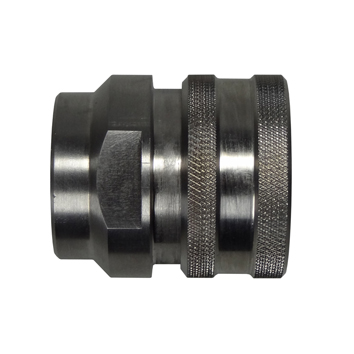

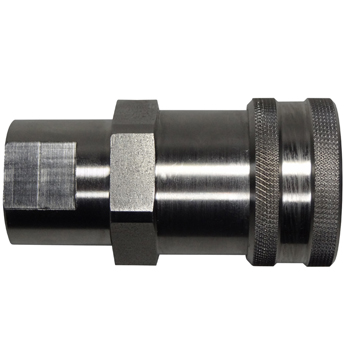

In addition to the standard version, this series of quick-release couplings with a large opening (18 mm) also has a version with an internal non-return valve for both the coupling and the adapter. The valve of the quick coupling is also opened by connecting an adapter without valve. The adapter with valve can only be used in conjunction with the coupling with valve.
ADAP200-3/4F, DN20 adapter
Description
Additional information
| Version |
DN20 Adapter |
|---|---|
| Connection |
3/4" BSP female |
| Material body |
Stainless steel (AISI 303) |
| Maximum pressure (bar) |
80 |
| Temperature range (°C) |
-20 / +100 |
| Weight (kg) |
0, 124 |
| HS-code |
73072910 |
